Specializing in automated and remote controllable antenna switching systems.

Coming soon

Remote controllable stack and 4-square controllers

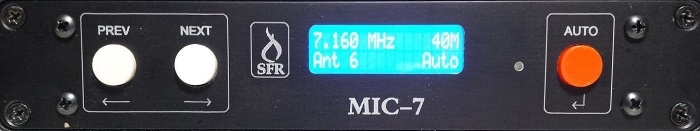

Introducing the MIC-7 antenna switch controller

The SureFire Radio MIC-7 Multi-Interface Controller is a phenomenal tool with application features for nearly every Amateur Radio station. It is a complete band decoder, antenna switch controller and remote control gateway contained in a single, attractive package. It supports Icom, Kenwood, Yaesu, Elecraft and Flex radios. From another room or another continent, it provides Internet remote control and computer connections to control a transceiver, a bandpass filter, an antenna switch and more!

Here are the major functions of the MIC-7 at a glance:
- LCD Display of Frequency, Band, Antenna and Status
- Internal Band Decoder
- RS-232, CI-V and Band Data interfaces
- Internal RS-232 and CI-V to USB interface
- Bi-directional band data port
- Dual port LAN Ethernet interface – Port A is for Internet control of the MIC-7, Port B is for the Radio Data Stream
- Direct USB connection to Flex Radios
- Two units may be interconnected for SO2R operation
- Automatic antenna lockout for antennas in use by other radio
- Completely configurable from front panel (Dual LAN port assignment by web browser)
- Dimensions, WHD: 6.7 x 1.4 x 7.6 in. (170.2 x 35.6 x 193.4 mm)
- Weight: 1.4 lbs. (0.64 kg)
